NB:
PURCHASERS REQUIRE A VAILD ICASA LICENCE. WE WILL REQUIRE A FAXED
COPY PRIOR TO SHIPPING. |
|
PORTABLE RADIOS: |
MOBILE
RADIOS & ANTENNAS WILL BE COURIERED TO STREET ADDRESSES + @ R150.00 |
|
LICENCE-FREE RADIOS: |
|
HYT TC320 UHF
c/w Battery & Charger - Short Range only! (2 ~ 3KM depending on
Terrain) |
|
LICENCE-FREE.
500mW UHF Portable Radio, 446MHz. Supplied with Li-Ion Battery, Charger,
Wrist Strap. 16-Channels. |
Kirisun PT446 UHF
c/w Battery & Charger - Short Range only! (2 ~ 5KM depending on
Terrain) |
|
LICENCE-FREE.
500mW UHF Portable Radio. Supplied with Ni-Cad Battery Pack, Charger,
Wrist Strap. 38-Channels. Available in Black. |
VHF PORTABLES: |
|
HYT TC610
- Affordable, High Quality, IP66 Qualtity Rating, Splash Proof. |
|
|
Frequency Range:
136-174MHz
RF Power Output:
5/2W(VHF) 5/2W(UHF)
Channel Capacity: 16
Water Protection Class IP66
LED Battery Gauge |
Kirisun PT4200
- Affordable, High Quality, Excellent value! |
|
|
Frequency Range:
136-174MHz
RF Power Output:
5/2W(VHF)
Channel Capacity: 16
Auto-Power Saving
Lithium Ion Battery, Compact Rapid Charger |
Vertex VX231
= Excellent, reliable, New Model. |
|
|
136 -174 MHz
CTCSS / DCS
5-Tone Encode / Decode
Dual 2-Tone Decode
Mil-STD 810 C/D/E
5 Watts Power Output
16 Channel Capacity
|
Kenwood TK2306
- Excellent value, 12 month Warranty. |
|
|
* 136 - 174MHz SCAN
* VOICE SCRAMBLER
* VOICE GUIDE
* PTT ID & SELCALL
* QT/DQT/DTMF SIGNALLING
* VOX READY
|
Motorola CP040
= Commercial portable, 4-channel capability. |
|
|
Frequency
Range:
136-174MHz
RF Power Output:
5/2W(VHF)
Channel Capacity: 16
Auto-Power Saving
Lithium Ion Battery, Compact Rapid ChargerChannels - 4 MilSpec -
810 F |
MOBILE RADIOS:
All VHF Mobile Radios rated for 12v DC,
25w RF Output. |
Vertex VX2100
- 8-Channel capability, front-firing speaker. |
|
Heavy Duty construction. |
|
|
·
Loud Front Facing Speaker
· DTMF ANI
· 2-Tone Encode/Decode (8 Decode per channel)
· 8 Channel Capacity
· 5-Tone Signalling Built-in (8 Decode per channel)
· Emergency Feature
· 146 - 174 MHz
· Encryption - Optional
· DTMF Paging - Optional
|
Vertex VX2200
- 128-Channel capability, f/f speaker. Mil-Spec. |
|
Heavy Duty construction. |
|
|
·
Loud Front Facing Speaker
· DTMF ANI
· 2-Tone Encode/Decode (8 Decode per channel)
· 128 Channel Capacity / 8 Groups
· 8-Character Alphanumeric Display
· Emergency Feature
· 146 - 174 MHz
· Encryption - Optional
· DTMF Paging - Optional
|
Kenwood TK7100
- 64-Ch Capability, Alpha/Num. Display, f/f speaker. Highly recommended. |
|
|
146
– 174MHz
Channels -64
Priority Scan and Group Scan
Wide/narrow Selection Per Channel
Alphanumberic LCD Display
High Quality Speaker
Versatile DTMF Modes
AVL Capability
DTMF / MSK PTT ID |
Kirisun PT8000
- 8-Channel capability, front-firing speaker. |
|
Solid construction, Best bang for
the Buck! |
|
|
·
Loud Front Facing Speaker
· DTMF Encoder/Decoder
· Channel Scan
· 8 Channel Capacity
· Programmable High-Low Power
· Emergency Feature
· 136 - 174 MHz
· Rugged Construction
|
Kirisun PT8100
- 256-Channel capability, front-firing speaker. |
|
Solid construction, High-Quality! |
|
|
·
Alpha-Numeric LCD Display
· DTMF Encoder/Decoder
· Channel Scan
· 256 Channel Capacity
· Programmable High-Low Power
· 165mm x 75mm x 131mm
· 136 - 174 MHz
· Rugged Construction
|
GME GX300
Mobile Radio (can be programmed
for 29Mhx, 27MHz, or both - Licence permitting) |
|
· Waterproof
Design
· LCD Display
· All legal 29MHz Channels
· All legal 27MHz Channels
· Available in White (Marine)
· Available in Black (4x4)
· Channel Scan with Memory)
· Advanced Noise Limiter
|
Dragon KR80
29MHz Radio (Removed from Price
List) |
|
ACCESSORIES: (All
Antennas supplied with PL259/6 Connector) |
|
|
VHF - Quarter-wave
(±400mm long, ROOF-TOP Mount). Preferred Antenna
for ORRA 1 & ORRA 2 |

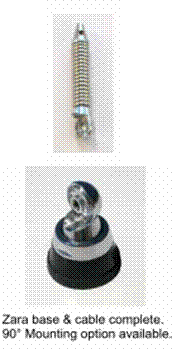

VHF Zara 130 - Rated
100W, Whip length dependent upon frequency, 2dB gain |
VHF Zara 60 - **
Quarter-wave - Preferred Antenna for ORRA 1 & ORRA 2. PILLAR Mount. ** |
29MHz Quarter -Wave Antenna,
Base loaded with Spring |
|
|
|
Ext. Speaker, Generic for all models |
|
|
|
Antenna Mount Options: |
|
Boot-Lip Antenna Mount for either Antenna |
|
Gutter-Mount for Zara Antenna (21mm Hole) |
|
Mag-Mount HAWK 6 M Cable & PL259/6
Connector, VHF or UHF (Quarter-Wave) |
29MHz Magnetic Antenna - Coil in
Magbase. (500mm shorter whip, slightly reduced range) |
NOTE: |
|
ORRA now makes use of
two VHF frequencies, which are about 8.5MHz apart from each other.
This is just outside the limits of a 5/8 Antenna such as the Zara130,
but within specification of a Quarter-wave antennas, such as the two
depicted below (Roof Top Mount and Pillar-Mount Zara60. For this reason,
it is recommended that you consider the quarter-wave antenna. |
|
|
ZARA130 ZARA60 |
Roof-Top
Mount Quarter-Wave Antenna |
|
|
BENTON BATTERY CHARGERS |
|
BENTON BX-1 BATTERY CHARGER, 12V
3.8AH |
|
|
|
FEATURES
Five-step fully automatic switchmode-mode battery charger and maintainer,
designed for charging a variety of SLA (Sealed Lead Acid) batteries,
widely used in motorbikes, cars and other vehicles. The batteries
may be of various types, i.e.:
· WET (Liquid Electrolyte),
· GEL (Gelatin type Electrolyte, absorbed into the plates),
· AGM (Absorbed Glass Mat) batteries.
· Dust and Splash-proof (IP65).
· Double insulated.
TECHNICAL DATA
Input Voltage: 220~240V AC.
Charging Voltage: 14.4V or 14.7V.
Charging Current: 3.8A ±10% or 0.8A ±10%
Battery Capacity: 1.2 - 120 AH/r
BULK CHARGING TIME
Battery Size: 60A - ±80% Charge, 14 Hours
Battery Size: 100A - ±80% Charge, 23 Hours
Battery Size: 120A - ±80% Charge, 24 Hours
|
BENTON BX-2 BATTERY CHARGER,
12V @ 7A / 24V @ 3.5A |
|
|
TECHNICAL
DATA
INPUT
VOLTAGE AC: 220-240VAC,
50/60Hz
OUTPUT
VOLTAGE:
12V & 24V (Auto-select)
INPUT
CURRENT: 1.5A
RMS max
EFFICIENCY:
>75%
CHARGING
VOLTAGE:
28.8V±0.25V or 29.4V±0.25V or 14.4V±0.25V or 14.7V±0.25V or 13.6V±0.25V
or 16.5V±0.25V
CHARGING
CURRENT:
7.0A±10% or 5.0A±10% or 3.0A±10% or 1.5A±20%
BACK
CURRENT DRAIN: <5mA
RIPPLE:
Max 150mV, 0.3A
AMBIENT
TEMPERATURE:
-20°C TO +50°C/-4°F to +122°F, Reduced output power at higher temperature
TYPE
OF CHARGER: Seven
step, fully automatic, switch mode with maintenance charging
TYPE
OF BATTERIES:
12V & 24V Lead-acid batteries (WET, MF, AGM and GEL)
BATTERY
CAPACITY:
14-230Ah (for 12V), 14-120Ah (for 24V)
DIMENSIONS
(LxWxH): 201x91x51mm
HOUSING
PROTECTION:
IP65 (Dust and Splash proof) Outdoor use
WEIGHT:
0.912kg
The
BX-2 can also function as a 13.8V 5A Power Supply.
|
|
|
|
|
|
|
|
|
|
