I found that I had a major hydraulic fluid leak after
this weekend's Trail must have been lead footed SWAMBO , looking
at the fluid sprayed on the inside of the rear right tyre; it was
the evidently the Rear Right Brake Cylinder Seals.
The answer - to strip and install a Seals Kit; Moto or Euro Parts
Code: P 832 (Generic)
The procedure was pretty straight forward, I tried to document
it well given that I didn't do peekchaz when I replaced the shoes
last month.
![](rear-brake1.jpg)
Shoes off and Cylinder Stri
![](rear-brake2.jpg)
Cylinder Stripped
![](rear-brake3.jpg)

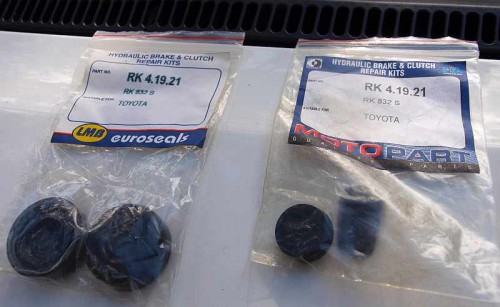

Seal Kits
![](rear-brake4.jpg)
Piston, Spring and Seals
![](rear-brake5.jpg)
Pistons and Push Rods
![](rear-brake6.jpg)

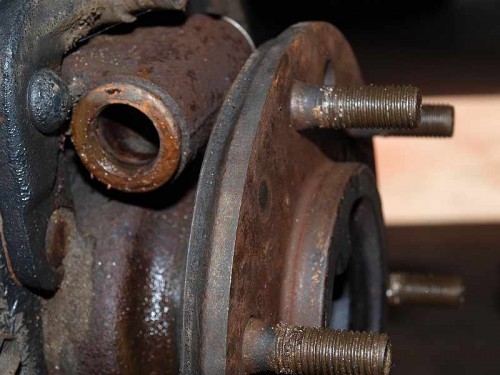

More Corrosion on Downfacing Cylinder
![](rear-brake7.jpg)
New Seals and Pistons In with Silicone
![](rear-brake8.jpg)

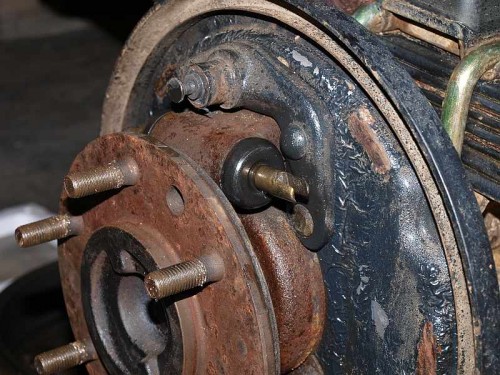

New Dust Covers on
![](rear-brake9.jpg)
Cleaning Shoes and Components
![](rear-brake10.jpg)
Shoes In
![](rear-brake11.jpg)
Shoe Retaining Springs On
![](rear-brake12.jpg)
Springs on Shoe Assembly
![](rear-brake13.jpg)
Lower Springs and Tensioner Assembly
![](rear-brake14.jpg)

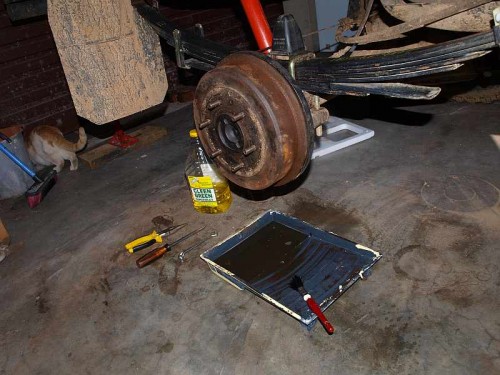

The ONLY tools and equipment required
Tools Used:
1. Long Nose pliers - essential for holiding shoe retaining clips,
tensioning springs, removing pencil spring etc...
2. Flat Scredriver - in assisting long nose and levering springs
and shoes into position, adjusting tensioner etc..
3. 10mm Open Ended Spanner - to open bleed screw
4. paint brush - for cleaning
5. Clean Green - more enviro friendly and less caustic than engine
degreaser
6. Paint tray - for catching dirty cleaning fluid/haudraulic fluid
etc.. and soaking parts
7. Symphoming device- consisting of 5mm clear tube attached to brake
line submerged in tin od spent fluid
8. Silicone Spray - for seating new seals and coating internal springs
after assembly
9. Replacement Dot4 Hydraulic Fluid (500ml)
10. Cat (Optional)
Time taken: Approx 1 and 1/2 hrs per wheel.
